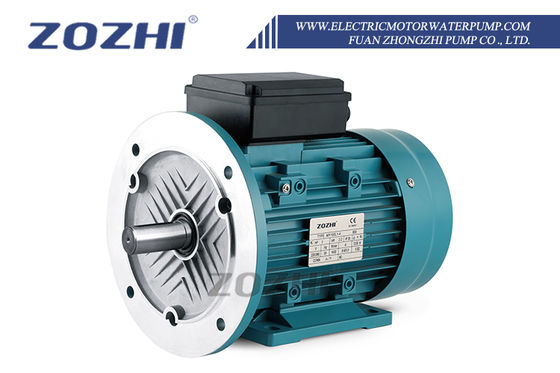

2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature

  • 2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature
Luogo di origine CINESE
Marca ZOZHI
Certificazione CE,CCC,ISO9001
Numero di modello MY100L-4
Quantità di ordine minimo 2 pezzi
Prezzo USD126.7piece
Imballaggi particolari CTNS/Veneer caso
Tempi di consegna GIORNI 14WORK
Termini di pagamento T/T, L/C
Capacità di alimentazione 10000 pezzi per 30 giorni

Contattami per campioni gratuiti e coupon.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

In caso di dubbi, forniamo assistenza online 24 ore su 24.

x
Dettagli
Output 3 CV / 2,2 KW temperatura ambiente 40°C
Velocità 1500 giri al minuto Frequenza 50/60Hz
Materiale dello statore Filo di rame 100% Montaggio B3, B5, B14, B34, B35
Compiti 1Anno Tipo di montaggio Con piedi
Dimensione della flangia B3 Livello di rumore 60 dB
Isolamento Classe F Proteggere la caratteristica Completamente chiuso
Tensione 220V-240V
Lasciate un messaggio
Descrizione di prodotto
Product Description
MY series is superior motors that can be used in a multitude of applications in the commercial, industrial, building service, water treatment and agricultural fields where superior quality and reliability is demanded.
2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature 0
Type
MY100L1-4
Phase
Single phase
Power
3HP/2.2KW
Frequency
50hz/60hz
Voltage
220V~230V
Speed
1500RPM
Protection class
IP55
Mounting
B3/B14/B5/B34/B35
Specification
2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature 1
2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature 2
2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature 3
FRAME
SIZE
MOUNTING DIMENSIONS(MM)
OVERALL DIMENSIONS(MM)

IMB14
IMB5
A B C D E F G H K
M N P R S T
M N P R S T
AB AC AD HD L
56
90 71 36 9 20 3 7.2 56 5.8
65 50 80 0 M5 2.5
100 80 120 0 7 3.0
110 108 100 156 198
63
100 80 40 11 23 4 8.5 63 7
75 60 90 0 M5 2.5
115 95 140 0 10 3.0
120 119 110 173 216
71
112 90 45 14 30 5 11 71 7
85 70 105 0 M6 2.5
165 130 200 0 12 3.5
132 137 117 188 250
80
125 100 50 19 40 6 15.5 80 10
100 80 120 0 M6 3.0
165 130 200 0 12 3.5
160 155 137 217 278
90S
140 100 56 24 50 8 20 90 10
115 95 140 0 M8 3.0
165 130 200 0 12 3.5
175 172 145 235 296
90L
140 125 56 24 50 8 20 90 10
115 95 140 0 M8 3.0
165 130 200 0 12 3.5
175 172 145 235 322
100L
160 140 63 28 60 8 24 100 12
130 110 160 0 M8 3.5
215 180 250 0 15 4.0
198 194 153 253 384


MODEL
Output
Voltange
Current
Full Speed
Eff@Load
Full-Load Power Factor
Ist/In
Break Down Torque
Approx. Weight
(HP) (KW)
(V)
IN(A)
(RPM)
(%)

(A)
TST/TN TMAX/TN
KG
MY561-2
0.12 0.09
230
0.75
2800
56
0.92
3
0.5 1.7
2.5
MY562-2
0.16 0.12
230
0.94
2800
60
0.92
4
0.5 1.7
3
MY631-2
0.25 0.18
230
1.13
2800
65
0.92
5
0.4 1.7
4.2
MY632-2
0.34 0.25
230
1.79
2800
66
0.92
7
0.4 1.7
4.5
MY711-2
0.5 0.37
230
2.61
2800
67
0.92
10
0.35 1.7
5.7
MY712-2
0.75 0.55
230
3.71
2800
70
0.92
15
0.35 1.7
6.7
MY801-2
1 0.75
230
4.93
2800
72
0.92
20
0.33 1.7
9.3
MY802-2
1.5 1.1
230
6.71
2800
75
0.95
30
0.33 1.7
10.6
MY90S-2
2 1.5
230
9.03
2800
76
0.95
40
0.3 1.7
13
MY90L-2
3 2.2
230
13.08
2800
77
0.95
65
0.3 1.7
16
MY100L-2
4 3
230
17.8
2800
79
0.95
92
0.3 1.7
25
MY561-4
0.08 0.06
230
0.58
1400
50
0.9
2
0.45 1.7
2.8
MY562-4
0.12 0.09
230
0.83
1400
52
0.9
3
0.45 1.7
3.4
MY631-4
0.16 0.12
230
1.01
1400
57
0.9
3.5
0.4 1.7
4
MY632-4
0.25 0.18
230
1.33
1400
59
0.9
5
0.4 1.7
4.5
MY711-4
0.34 0.25
230
1.93
1400
61
0.92
7
0.35 1.7
5.5
MY712-4
0.5 0.37
230
2.82
1400
62
0.92
10
0.35 1.7
6..5
MY801-4
0.75 0.55
230
4.07
1400
64
0.92
15
0.35 1.7
9.1
MY802-4
1 0.75
230
5.21
1400
68
0.92
20
0.32 1.7
10.4
MY90S-4
1.5 1.1
230
7.13
1400
71
0.95
30
0.32 1.7
13
MY90L-4
2 1.5
230
9.4
1400
73
0.95
40
0.3 1.7
16
MY100L1-4
3 2.2
230
13.6
1400
76
0.95
65
0.3 1.7
22
MY100L2-4
4 3
230
18
1400
77
0.95
88
0.3 1.7
29
Using Effects
2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature 4
2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature 5
2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature 6
2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature 7
2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature 8
Packing&Delivery
2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature 9
Company Profile
2.2kw 3hp 220V Single-Phase Capacitor-Run Induction Motors 1500rpm RATED Speed 60hz Frequency Waterproof Protect Feature 10
Fuan zhongzhi pump Co.,Ltd
Established in 2006,Fuan zhongzhi pump Co.,Ltd trademark registration "ZOZHI" has been a modernized private enterprise with scientific research,the production, sales and service . specialized in manufacturing various types of pumps,such as peripheral,centrifugal,jet,deep well,sewage pump etc,high efficiency AC motor, alternator and diesel generator.

Zhongzhi pump are widely used in shallow and deep well pumping,pipeline booster,water tower booster,garden irrigation, agriculture irrigation and aquaculture drainage etc.

Zhongzhi motor can be used for general driving,such as household appliance,pumps,fan and recording meters etc.

Zhongzhi generator fully applied to communication systems, data centers, mining, power, highways, engineering companies, financial systems, hotels, railways, airports ,commercial buildings, hospitals, factories, etc,and with strategic partners to establish a global service system. Our production of generator sets have become the most number of hotels, buildings and industrial and mining enterprises of backup power.

Zhongzhi products popular in more than 70 countries in Europe,America, the Middle East, Africa, Southeast Asia and other.

Motivated by our slogan“Solidarity,Exploration,Honest,Faith”, we strive to become the global leader in providing comprehensive and reliable solutions to make this world a better place to live in.

FAQ
Q1 Are you a manufacturer or a trading company?
We are a manufacturer of water pump and motor in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q4 What about delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air and By express delivery.
Q6 About sample?
Available.
