RECS-120P Electronic Centrifugal Switch Motor Accessory with 50Hz/60Hz Operation Universal Compatibility and Silent Operation

  • RECS-120P Electronic Centrifugal Switch Motor Accessory with 50Hz/60Hz Operation Universal Compatibility and Silent Operation
  • RECS-120P Electronic Centrifugal Switch Motor Accessory with 50Hz/60Hz Operation Universal Compatibility and Silent Operation
Luogo di origine Cina
Marca ZOZHI
Certificazione CE,CCC,ISO9001
Numero di modello RECS-205P
Quantità di ordine minimo 2 pezzi
Prezzo USD7.9piece
Imballaggi particolari CTNS/Veneer caso
Tempi di consegna 14 giorni di lavoro
Termini di pagamento T/t, l/c
Capacità di alimentazione 10000 pezzi per 30 giorni

Contattami per campioni gratuiti e coupon.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

In caso di dubbi, forniamo assistenza online 24 ore su 24.

x
Dettagli
Temperatura 0-70℃ Certificazione CE
Corrente massima 60A/3S Switch Freq 2s on/2s off max
Voltaggio 115v
Evidenziare

50Hz/60Hz Operation Electronic Centrifugal Switch

,

Universal Compatibility Motor Accessory

,

Silent Operation Electronic Centrifugal Switch
Lasciate un messaggio
Descrizione di prodotto

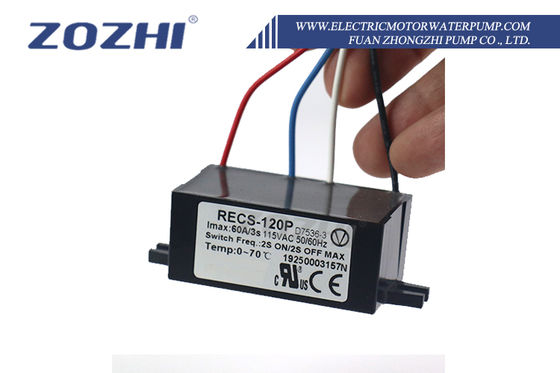

RECS-120P Electronic Centrifugal Switches Motor Accessories
Product Description
RECS-120P Electronic Centrifugal Switch is designed for fans and blowers. This solid-state replacement eliminates common mechanical switch failures while providing enhanced reliability and performance.
Product Overview
Traditional single-phase AC motors use mechanical centrifugal switches that suffer from tolerance build-up, mechanical fatigue, vibration, and electrical sparking. Our Electronic Centrifugal Switch (ECS) provides a reliable solid-state alternative that monitors speed, voltage/current, and phase to precisely control switching operations.
Key Features
  • Compact design with small package size
  • Exceptional durability with 1 million cycle lifespan
  • Universal compatibility with auto-matching for different motors
  • Wide voltage range: 115V (90V-137V) or 230V (198V-264V)
  • 50Hz/60Hz operation capability
  • Silent operation with no switching noise or contact trembling
  • High compatibility with both general-purpose and application-specific motors
  • Simple installation and maintenance, fits standard motor frames
  • Epoxy resin or silicone rubber sealed construction resists dirt, dust, moisture, and vibration
  • Automatic starting capacitor discharge
  • Certified to ROHS, CE, and UL standards
Technical Specifications
Parameter Value Unit Package (mm)
Rated Voltage 115V/230V V AC P: 72L*31W*23H
S: 52L*50W*24H
C: CAP Case 46Dia*86L
Max. Start Peak current (20ms, TC=25℃) 100A (RECS-105/205)
200A (RECS-120/220)
400A (RECS-140/240)
600A (RECS-160/260)		 A
Max. Start Peak current (3.0S, TC=25℃) 30A (RECS-105/205)
60A (RECS-120/220)
120A (RECS-140/240)
180A (RECS-160/260)		 A
Initial switch-on delay time 80 mS
Restart delay time (TC=25℃) 5 S
ON/OFF Frequency 0.2 Cycle/S
Ambient air temperature 0-70 ℃
Dielectric strength (between case and lines) ≥2500 V DC
RECS-120P Electronic Centrifugal Switch Motor Accessory with 50Hz/60Hz Operation Universal Compatibility and Silent Operation 0
Model Specifications
Model Type Volt Range Max peak current Imax(3s) Power Range
RECS-205P 160-264VAC 30A Ima≤15A 0-550W
RECS-220P 160-264VAC 60A Ima≤35A 600-2200W
RECS-240P 160-264VAC 120A Ima≤75A 2200-4300W
RECS-105P 85-132VAC 30A Ima≤15A 0-330W
RECS-120P 85-132VAC 60A Ima≤35A 300-1100W
RECS-140P 85-132VAC 120A Ima≤75A 1100-2200W
RECS-020T 85-264VAC 60A Ima≤35A 110V 300-1100W
220V 600-2200W
