High Pressure Pump Hollow Shaft Single Phase Motor Hollow Shaft Diameter Φ24mm Built for Robustness and Long Term Industrial

  • High Pressure Pump Hollow Shaft Single Phase Motor Hollow Shaft Diameter Φ24mm Built for Robustness and Long Term Industrial
Marca ZOZHI
Certificazione CE
Model Number HS112M2-4
Minimum Order Quantity 1
Prezzo USD165
Packaging Details CTNS/VENEER CASE
Delivery Time 7 DAYS
Payment Terms 100% Before Shipment
Supply Ability 10000
Dettagli
Frame Size 112# Rated Speed 1400rpm
Power Range 5.5KW/7.5HP Application High Pressure Pump
Insulationclass Class F Weight 32 Kg
Diameter 42 Mm Color Depend On Customer
Evidenziare

Hollow shaft motor high pressure pump

,

Single phase hollow shaft motor

,

Industrial hollow shaft motor Φ24mm
Lasciate un messaggio
Descrizione di prodotto

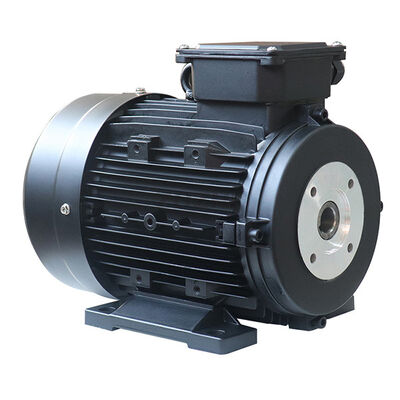

High Pressure Pump Hollow Shaft Single Phase Motor
Hollow Shaft Diameter: Φ24mm | Built for Robustness and Long-Term Industrial Use
Product Overview
The ZOZHI HS112M2-4 Hollow Shaft Motor is an advanced IE3 efficiency AC motor engineered for demanding industrial applications. This hollow shaft design combines high efficiency with robust performance, making it ideal for systems requiring reliable power transmission and simplified installation.
Key Specifications
Specification Details
Model Number HS112M2-4
Hollow Shaft Diameter Φ24mm
Rated Speed 1400 RPM
Frame Size 112#
Housing Material Die-Cast Aluminum
Efficiency Class IE3 (Premium Efficiency)
Insulation Class Class F
Certification CE Certified
Design Features
  • Hollow Shaft Design: Enables direct coupling with driven components, eliminating need for additional coupling devices
  • Die-Cast Aluminum Housing: Provides excellent corrosion resistance and efficient heat dissipation
  • Compact Frame Size: 112# frame ensures compatibility with various mounting configurations
  • Customizable Colors: Available in various colors to match company branding
  • Energy Efficient: IE3 classification reduces energy consumption and operational costs
Industrial Applications
This hollow shaft motor is versatile and suitable for numerous industrial applications:
  • Conveyor systems and packaging machinery
  • Automated assembly lines and robotics
  • HVAC systems (fans, blowers, pumps)
  • Agricultural equipment and irrigation pumps
  • Automated guided vehicles (AGVs)
Ordering Information
Parameter Details
Minimum Order Quantity 1 Unit
Unit Price USD 165
Supply Ability 10,000 Units
Delivery Time Approximately 7 Days
Payment Terms 100% Payment Before Shipment
Manufacturing Origin China
Packaging & Shipping
Product Packaging
Each motor is secured in custom foam inserts and placed in sturdy, double-walled cardboard boxes. Desiccant packets are included for moisture protection. All packaging materials are environmentally friendly and recyclable.
Shipping Options
We offer standard, expedited, and express delivery services through trusted carriers. Packages are clearly labeled with handling instructions and tracking information. Contact our sales team for customized shipping solutions for bulk orders.
Frequently Asked Questions
Q: What is the brand and model number of the Hollow Shaft Motor?
A: The motor is branded ZOZHI with model number HS112M2-4.
Q: Where is the Hollow Shaft Motor manufactured?
A: The motor is manufactured in China.
Q: What certifications does the ZOZHI Hollow Shaft Motor have?
A: The motor is CE certified.
Q: What is the minimum order quantity and price?
A: Minimum order is 1 unit at USD 165 per unit.
Q: What are the packaging and delivery details?
A: Motors are packaged in cartons or veneer cases with delivery in approximately 7 days.
Q: What are the payment terms?
A: 100% payment is required before shipment.
Q: What is the supply ability?
A: Supply ability is 10,000 units.
