HS Series Hollow Shaft Motor for High Pressure Washer Systems with Aluminum Housing

  • HS Series Hollow Shaft Motor for High Pressure Washer Systems with Aluminum Housing
  • HS Series Hollow Shaft Motor for High Pressure Washer Systems with Aluminum Housing
  • HS Series Hollow Shaft Motor for High Pressure Washer Systems with Aluminum Housing
Luogo di origine Cina
Marca ZOZHI
Certificazione CE
Numero di modello HS112M2-4
Quantità di ordine minimo 10
Prezzo 168usd/pcs
Imballaggi particolari CTNS+pallet
Tempi di consegna 14days
Termini di pagamento T/T
Capacità di alimentazione 10000 PCS/30 giorni
Dettagli
attuale 1.5a Fase 3 fasi
Girante Girante in ottone Temperatura media 5-50℃
Voltaggio 220/380V Tipo di pompa Centrifugo
tipo Motore asynchrone Colore Specifiche del cliente
Funzione Massaggio, Per vasca Pressione Alta pressione
Modello HS112M2-4 OEM SÌ
Alloggiamento Alluminio Energia 5.5KW/7.5HP
Evidenziare

Hollow shaft motor aluminum housing

,

High pressure washer hollow shaft motor

,

HS series hollow shaft motor
Lasciate un messaggio
Descrizione di prodotto

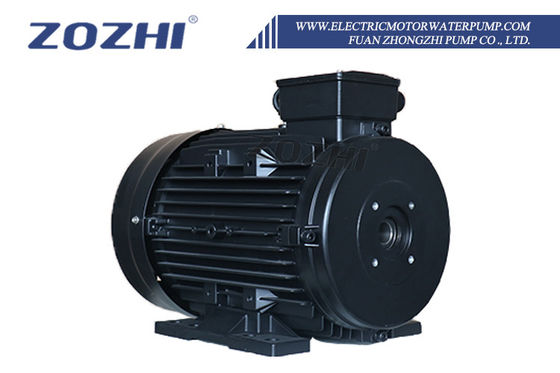

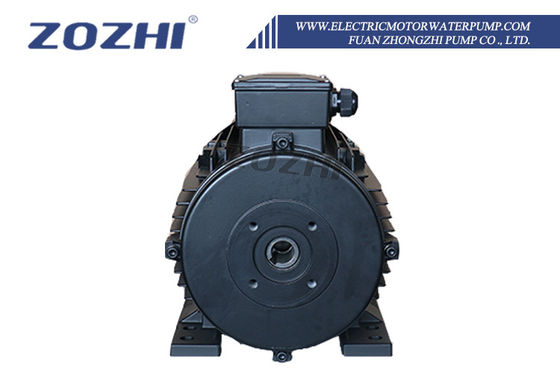

HS Series Hollow Shaft Motor for High Pressure Washer Systems
The HS Series Hollow Shaft Motor is engineered specifically for high-pressure cleaning systems, industrial washing equipment, and pump drive applications. Featuring a direct coupling structure between motor and pump, this design reduces overall machine footprint while enhancing installation efficiency in space-constrained industrial environments.
Key Features & Benefits
  • Direct coupling structure minimizes overall system size
  • Improved installation efficiency for compact industrial spaces
  • Available in single-phase and three-phase configurations
  • High efficiency operation with up to 90% energy efficiency
  • Robust protection ratings for humid environments
  • Suitable for continuous duty operation
  • Low vibration performance for stable long-term operation
Technical Specifications
Parameter Specification
Power Range 0.37kW - 30kW
Speed 880 - 2920 RPM
Protection Rating IP54 / IP55
Efficiency Up to 90%
Duty Type S1 Continuous Duty
Voltage 220V - 400V
Insulation Class F
Application Areas: High-pressure washer systems, industrial cleaning plants, swimming pool pumps, water circulation equipment, and other applications requiring reliable, continuous operation in demanding environments.
Standards & Compliance
Built according to IEC standards, the HS series motors support IE1, IE2, and IE3 efficiency classes. Available with IP44, IP54, and IP55 protection ratings, along with B/F/H insulation classes, making them ideal for humid conditions and continuous-duty industrial applications.
Operating Conditions
Designed for S1 continuous operation with an ambient temperature range from -15℃ to 40℃, ensuring reliable performance across various industrial environments.
